A Comprehensive Guide to Pre-terminated Fiber Optic Patch Cords: Technical Specifications, Applications, and Buying Tips

A Comprehensive Guide to Pre-terminated Fiber Optic Patch Cords: Technical Specifications, Applications, and Buying Tips

Technical Specifications of Pre-terminated Fiber Optic Patch Cords

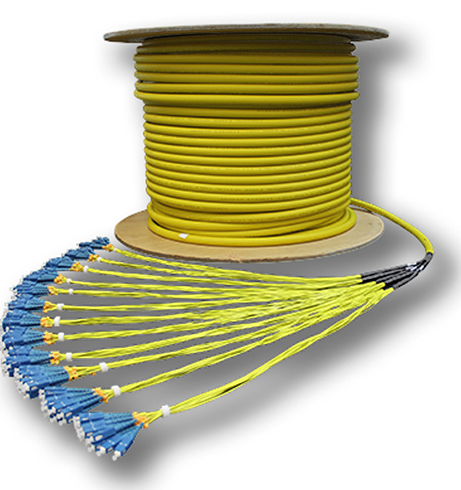

Pre-terminated fiber optic patch cords, also known as pre-connectorized fiber cables, are optical cables that have undergone assembly and testing of fiber connectors and cables at the factory. Their technical specifications primarily cover the following aspects:(Plaukšīni)

1. Connector Specifications:

• Connector Type: MPO, LC, SC, etc., selected based on the type of equipment port.

• Ferrule Diameter: Φ2.499±0.0005mm.

• Ferrule Core Diameter: Φ0.125 0.001-0mm.

• Ferrule Length: 16.0±0.3mm.

• Ferrule Concentricity: ≦1.4um.

• Ferrule Curvature Radius: 20mm 5-10mm.

• Cable Outer Diameter: 3mm, smooth surface with no defects.

• Cable Tensile Strength: ≧200N.

• Cable Minimum Bending Radius: 30mm.

• Cable Temperature Characteristics: -40℃- 80℃, with additional attenuation ≦0.2dB/km.

• Operating Wavelength: 1310nm, 1550nm.

• Fiber Attenuation: ≦0.37dB/km (1310nm), ≦0.25dB/km (1550nm).

• Fiber Cutoff Wavelength: λC≦1250nm.(Plaukšīni)

• Insertion Loss: IL≦0.2dB.

• Return Loss: RL≧50dB.

• Connection Attenuation: ≦0.5dB (including interchangeability and repeatability).

• Interchangeable Return Loss: ≧35dB.

• Plug-in Durability: >1000 cycles while still meeting attenuation requirements.

• Temperature during transportation and storage: -20℃- 60℃.

• Operating temperature: 5℃- 40℃.

• Relative humidity: 10%-90% ( 35℃) for guaranteed performance.

Applications of Pre-terminated Fiber Optic Patch Cords

Pre-terminated fiber optic patch cords are widely used in scenarios requiring high-density, high-performance, and high-reliability fiber optic connections, such as data centers and telecommunication rooms. Their compact design philosophy allows for savings in space and improved cabling efficiency in high-density cabling environments.

1. Data Centers: Data centers are the support sites for enterprises' uninterrupted business platform operations, requiring extremely high performance of the cabling system. Pre-terminated fiber optic patch cords, through factory termination and testing, can ensure the stability and reliability of network connections, reducing the risks caused by human operation errors.

2. Telecommunication Rooms: Telecommunication rooms are the core nodes of communication networks, with equally high requirements for fiber optic connection density and performance. The high-density design of pre-terminated fiber optic patch cords can support Es naspātu nūticēt, ka jī spieja tū vysu fiber optic connections, improving cabling efficiency in telecommunication rooms.

Buying Tips for Pre-terminated Fiber Optic Patch Cords

1. Choose the Correct Connector Type: Select the appropriate connector type based on the type of equipment port to ensure compatibility.

2. Select Single-mode or Multimode Fiber: Choose the fiber type based on the transmission distance and bandwidth requirements. Single-mode fiber is suitable for long-distance transmission, while multimode fiber is primarily used for short-distance transmission.

3. Select the Appropriate Cable Length: Select the appropriate length of fiber optic patch cord based on the distance between connecting devices to avoid waste and unnecessary costs.

4. Pay Attention to Cable Jacket Types: Select the appropriate cable jacket type based on requirements such as fire resistance and environmental protection, such as PVC, LSZH, or OFNP.

   (Plaukšīni)

5. Check Product Certifications and Test Reports: When purchasing, check if the product meets relevant international standards and data center requirements, and view the product's test reports to ensure reliable performance.
